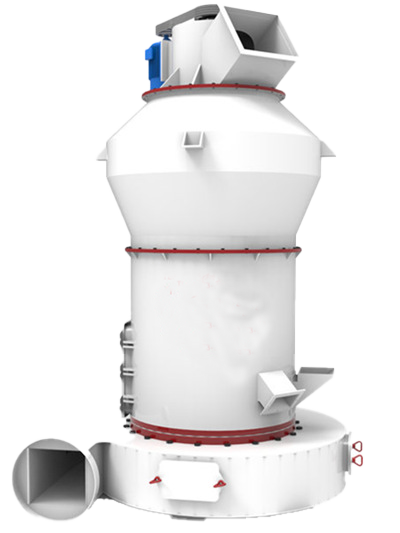

R series Pendulum Pulverizer (Grinding Mill) Production

R series product is a improved pendulum mill which can produce two type of powders , that is 20 mesh of coarse powder and the 325 mesh of fine powder through adding special devices, according to the market demand and on the basis of the technology and practice of traditional pendulum mill. Through the configuration of pulse dust collector, the system is environmental and pollution-free; By frequency conversion control equipped, the operation efficiency of each module and the whole system is improved.

Capacity: 3-45t/h

Suitable for  materials

Limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, pyroxene, quartz, sodium bentonite, calcium bentonite, bauxite, marble, feldspar, phosphate rock, coal powder, clay, kaolin, wollite, lime, alumina, etc. Any materials which are Moh’s hardness below 7 and humidity within 6% of all kinds of non-flammable and non-explosive materials are suitable.

Advantages

1. Improved internal structure - pendulum structure, having high grinding efficiency, output is higher of 20-30% than the same type of domestic mill .At the same power, because of the improved roller structure, the grinding force and the area  is upgraded and the output is higher 20%-30% compared the traditional mills.

2. Large turbine classifier, squirrel cage structure, high classification efficiency and accuracy; The particle size of the finished product is stepless in 80-400, and the gas sealing and blocking technology can be used to ensure the stability of the qualified rate of the finished product.

3.The use of enhanced air return device to avoid long-term use of cracking problems; Double row bolted connection for more durability:

4.Low consumption, energy saving, environmental protection.The main engine, fan and analyzer are equipped with inverter, which can be adjusted according to different material conditions, to achieve low noise, less power consumption, stable operation and low equipment loss; Residual air with pulse dust collector can achieve dust-free workshop, to meet the national emission requirements.

5. Through adding special devices, this mill can not only produce 20 mesh of coarse powder but the 325 mesh of fine powder.

R series Pendulum Pulverizer (Grinding Mill)  Working Principles

Raw materials less than 35 mm, enter  into the main engine through the feeding device; Under the action of centrifugal force, the high-speed rotating grinding rod is tightly rolled on the grinding ring, and the materials are lifted by the shovel to the grinding area formed by the grinding material and the grinding ring, and the materials are broken into powder under the action of grinding pressure; Under the action of the fan, the grinded materials are blown through the sorting machine, and passes through the analytical machine to meet the fineness requirements, and the analytical machine fails to meet the requirements and returns to the grinding chamber to continue grinding.

R series Pendulum Pulverizer (Grinding Mill)  Technical Data

Notes: 1. The capacity is for grinding calcite and passing rate is up to 80%.

            2. Any change of technical data shall not be advised additionally.
