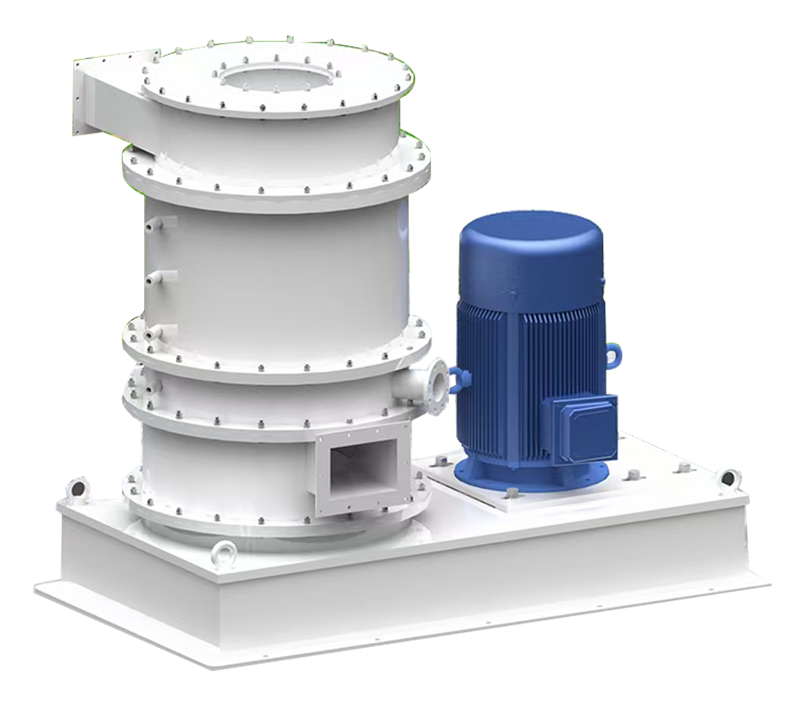

Cell Mill  Introduction

It has the ability of powder drying, grinding, dispersion, de-agglomeration, chemical modification and classifying; Inlet air temperature （℃）:≤450;

Cell Mill Working principles

The material enters the system through the material inlet under the negative air pressure. According to the different material characteristics, the feeding can be controlled by the metering or quantitative feeder with variable speed device. After the grinding and de-agglomeration of the main machine, the product is coated and modified according to the requirement by adding certain amount of coating agent to the grinding area of the mill in a certain rate, so as to realize the application of coating agent in grinding use. In some cases, more than one coating agent can be added at the same time. According to the fineness of the required products, qualified fine powder will go outoftheclassifyingsystem,enterintodustremoval equipment along with negative pressure air stream, be collected by a powder collector and become the finished product. For the liquid material or the filter cake after pressure filtration, the system can be heated with an air heater. At this time, the Cell Mill is an efficient drying machine. The Cell Mill can accept inlet temperatures up to 450ºC. The dryness of the product is controlled by the outlet temperature, which is typically in the region of 95ºC. And product moisture content can be controlled under 0.2%, the minimum can be controlled in 0.05%. Filter cakes, sludges and slurries can be dried, ground and de-agglomerated close to their natural particle sizes in a single operation.

Typical Feed Materials of Cell Mill

Minerals: Natural graphite ,Kaolin (natural and calcined) ,Limestone,marble,calcite,Magnesium hydroxide, PCC and GCC, Phosphates,Precipitated silica, Talc, Titanium dioxide

Chemicals: Anode and cathode, materials of Battery, Graphite electrode, Iron oxides, Petroleum coke, Methyl cellulose, Pigments, Silica gels, Stearates, Zeolites

Foodstuffs:  Animal proteins, Casein, Cocoa, Peas, Potato protein, Sugar, Wheat flours, Wheat gluten ,Wheat starch

Cell Mill Technical Advantages

1. It integrates powder drying, grinding and de-agglomeration, coating, modification and dispersion treatment together.

2. Modular structure and flexible design. It is suitable for customized design.

3. Compact structure, small size, simple operation, easy maintenance and repair.

4. Stable operation, less maintenance and lower noise.

5. The coating rate of powder is very high, which can reach 99.5%.

6. The drying level is high and the moisture of finished product can be lower than 0.2%.

7. Rotor blades are made by specially hardened steel

Cell Mill Technical Data
