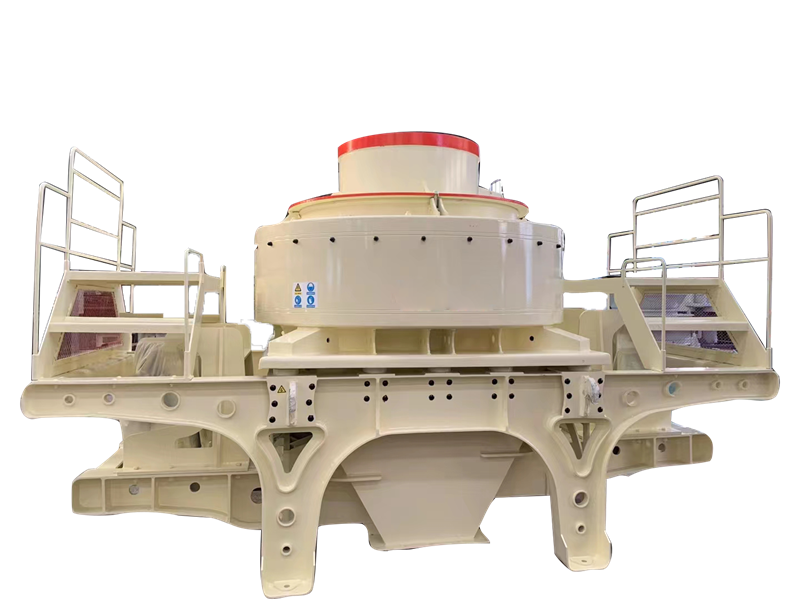

VSI Sand Making Machine  Production

VSI sand making machine, also known as vertical shaft impact crusher, is based on the feedback and suggestions of users over the years, we have developed with the world level of the third generation of high-performance sand making equipment. Compared with the traditional sand making machine, energy saving 50%, the finished sand grain shape is good, high quality, the particle size below 5mm can reach more than 80%; it has a high production efficiency and environmental protection, widely used in artificial sand, cement, construction, chemical industry and other fields.

VSI Sand Making Machine Advantages And Features

1. Large processing capacity and high output, compared with the traditional equipment under the same power, the output is increased by 30%, and the operation is stable.

2. Low consumption of wearing parts. Better crushing chamber material impact Angle design directly reduce the use of equipment costs.

3. The finished product has excellent particle shape, the product is a cube, good particle shape, reasonable grading, fineness modulus can be adjusted; It is especially suitable for artificial sand making and stone shaping, and the practice has proved that the effect of sand making and shaping is 30% higher than that of other traditional equipment.

4.Hydraulic cover opening device is more convenient and easier to replace the wearing parts in crushing cavity. Decreases the downtime and saves time and energy.

5.One machine for multi-purpose, flexible application.

There are wide ranges of crushing chambers and unique crushing structure can make stone hits stone and stone hits iron simultaneously. If we have different purposes，just adjust few parts, we could use it for artificial sand, sand reshaping etc.

VSI Sand Making Machine Working Principle

The material enters the hopper of the VSI sand making machine from the vibration feeder, and is divided into two parts by the distributor. One part enters the high-speed rotating impeller from the middle of the distributor, is rapidly accelerated in the impeller, and then impacts together to the material lining in the vortex branch cavity, rebounds by the material lining, and impacts diagonally upward to the top of the vortex cavity, and then changes its direction of movement and deflected downward. The material emitted from the impeller runner forms a continuous material screen, so that a piece of material is broken by two or more impacts, friction and grinding in the eddy crushing chamber.

VSI Sand Making Machine Technical Data
