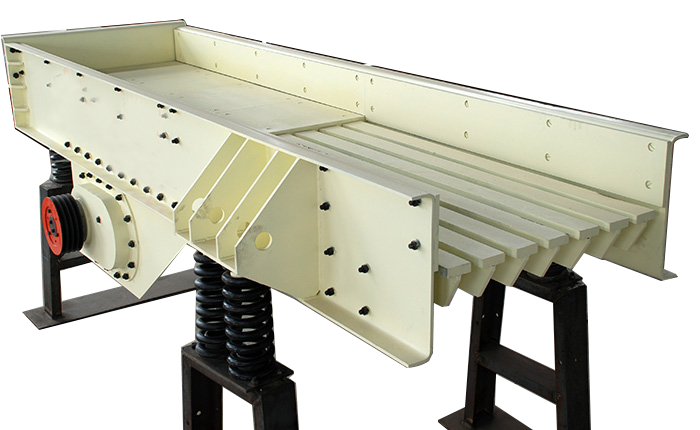

Vibrating Feeder Product Introduction
Vibrating feeder is also know as vibrating feeder. When working, the vibrating feeder will send the blocky and granular materials from the storage bin to the receiving device evenly, regularly and continuously , it can also adjust the exciting force and the flow rate at any time. The feeder has the characteristics of stable vibration, reliable operation, long life, convenient and stable adjustment, etc.
Vibrating Feeder Technical Data
Type | Feed chute size (mm) | Max.feeding size (mm) | Capacity (t/h) | Power (kw) | Dimension (mm) |
GZD-900×2000 | 900×2000 | 300 | 20-80 | 5.5 | 2060×1020×1025 |
GZD-900×3000 | 900×3000 | 350 | 30-120 | 7.5 | 3050×1020×1025 |
GZD-960×3800 | 960×3800 | 450 | 120-210 | 11 | 3880×1640×1115 |
GZD-1100×4200 | 1100×4200 | 500 | 200-430 | 15 | 4280×1820×1220 |
GZD-1100×4900 | 1100×4900 | 580 | 220-450 | 15 | 4980×1820×1220 |
GZD-1300×4200 | 1300×4200 | 650 | 280-500 | 18.5 | 4280×2020×1220 |
GZD-1300×4900 | 1300×4900 | 650 | 320-550 | 18.5 | 4980×2020×1220 |
GZD-1300×6000 | 1300×6000 | 650 | 450-600 | 22 | 6080×2020×1270 |
GZD-1500×6000 | 1500×6000 | 750 | 500-750 | 30 | 6100×2220×1270 |
GZD-1600×6000 | 1600×6000 | 900 | 650-1400 | 37 | 6230×2250×1740 |
