Vibrating Screen product introduction

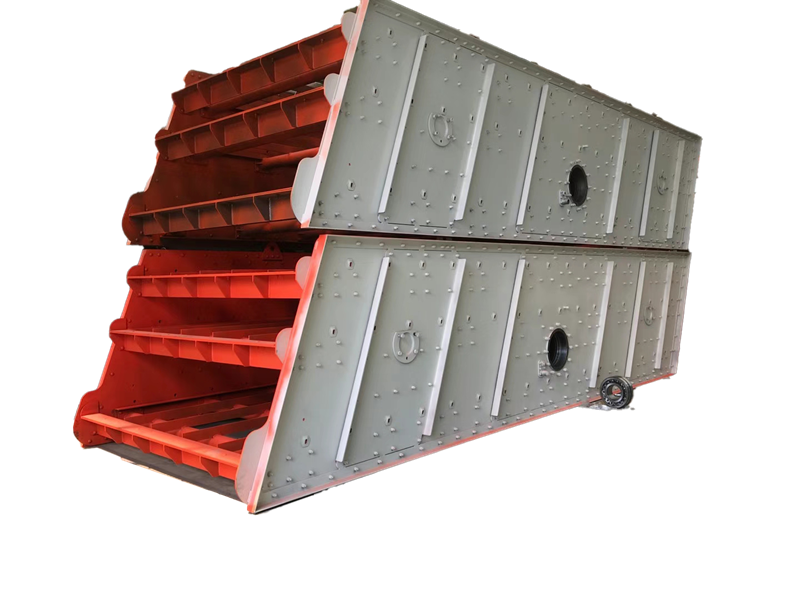

YZS series circular vibrating screen adopts the current international mature design concept, suitable for heavy, medium and fine screening and other screening operations, widely used in mining, building materials, transportation, energy, chemical and other industries of product screening or grading. YZS circular vibrating screen is mainly composed of screen box, spring support group, support, vibrator, transmission device, motor, transmission device support and other components. With the spring as the supporting elastic element and the eccentric block exciter as the vibration source, the exciting force is generated by the rotation of the eccentric block to make the screen box produce circular reciprocating motion. The material continuously makes an approximate circular bouncing and tumbling movement on the inclined screen surface. Through repeated comparison with the screen hole, the material smaller than the size of the screen hole passes through the screen, and the material larger than the size of the screen hole is on the screen surface, thus completing the screening process.

Vibrating Screen working principle

The motor makes the exciter eccentric block rotate at a high speed through the triangle belt, which making the eccentric block produces a great centrifugal force ,then stimulate the screen box to produce a circular motion of amplitude, and the material on the screen is subjected to the impulse passed by the screen box on the inclined screen surface to produce a continuous throwing motion, and the particles smaller than the screen pass through the screen when the material meets the screen surface, so as to achieve classification.

Vibrating Screen Advantages and features

1.The structure is novel and the eccentric block is used as the exciting force, and the exciting force is stronger.

2. Having the features of small amplitude, high frequency, large inclination structure, so screening efficiency is higher,

3. The use of spring steel makes the screen be long service life, not easy to plug holes.Different sizes of finished It can  produce different sizes of products by replacing screens with different apertures.

4. Thin-oil lubrication ensures that the bearing lubrication is always in a better state, so as to completely solve the bearing over-heath problem, so that the main shaft bearing can maintain a constant temperature, extending the maintenance cycle and service life.

5.The side plate adopts the whole plate laser cutting technology, no welding, and the structural parts are riveted with high-strength bolts.

Vibrating Screen Technical data
