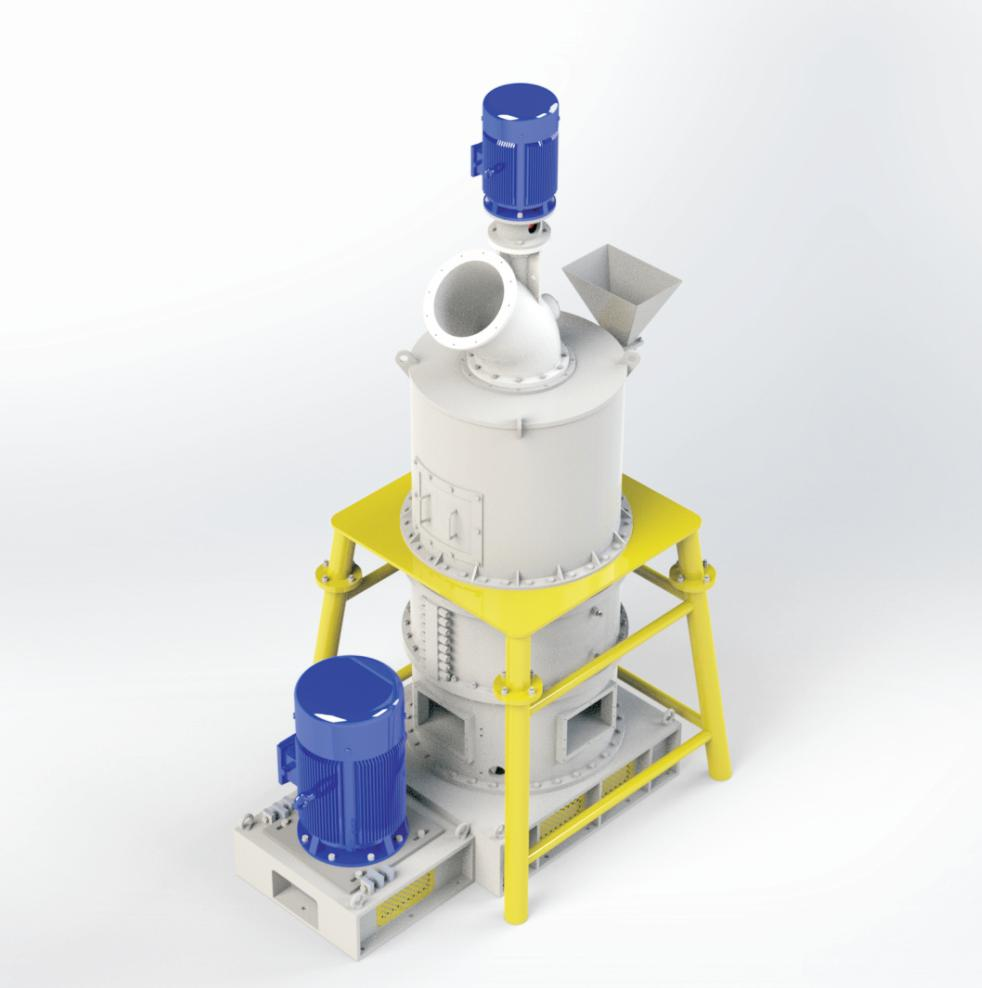

Micro Powder Mill（new ring roller mill） Product Introduction

ZY series micro-powder absorbs modern grinding technology, based on the development trend and demand of the domestic mill market, and is a new equipment for ultra-fine powder processing users. It is widely used in processing materials such as limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, wollastonite, carbon black, activated carbon, kaolin etc, which are moh’s hardness below 7 and the moisture.

Micro Powder Mill Working Principle

 The broken materials below 10mm by crusher are sent to the middle of the upper turntable, the material is dispersed to the circumference of the circle under the action of centrifugal force, and falls into the raceway of the grinding ring by crushing. After grinded in the first race way, the material goes to the second and third turnplate, and the the crushed powder are brought into the powder separator. Turbine in the separator makes the coarse powder drop down and regrinded , the fineness powder enters the cyclone powder collector with the air flow and is discharged by the discharge valve at the lower part of the cyclone powder collector as final product. At the same time, air current with a little dust goes out through blower and muffler after purified by filter.

Micro Powder Mill Features

1. The mill has the function of grinding and powder selection , so the total system is more simple, reducing the floor area and investment costs.

2. Multi-roller layer grinding, rational optimization of roller grinding curve, online instant selection of powder, equipment grinding power consumption is lower, more energy saving.At the same time, the final powder has uniform particle size distribution, avoiding overgrinding phenomenon.

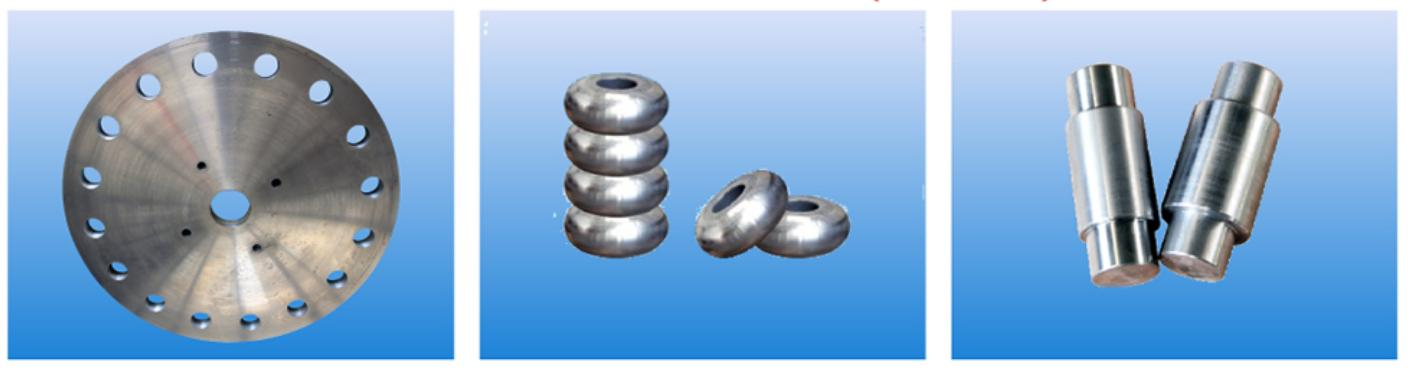

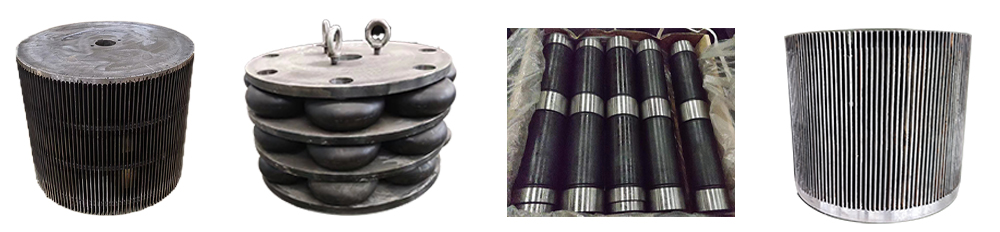

3. Forged by special material, so the spare parts such as the ring and roller are used for long time.When grinding calcite,it can be used more than one year. The material layer grinding mechanism effectively reduces the pollution in the process of material processing and ensures the quality of the finished product.

4. Non-bearings and non-bolt in the grinding chamber avoid  bearing sealing and destroying the machine because of screw looses and falling off,

Micro Powder Mill  Specifications

 Any change of technical data shall not be advised additionally.
